To operate the LDWS, pull the switch with the Engine Start/Stop Button in the


To operate the LDWS, pull the switch with the Engine Start/Stop Button in the ON position. The indicator illuminates on the cluster. To cancel the LDWS, pull the switch again.

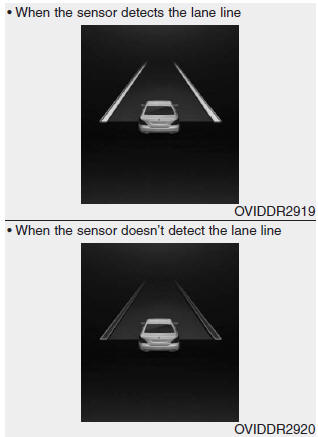

LDWS indicator light illuminates:

  • [Green] When the system operating conditions are satisfied.
  • [White] When system operating conditions are not satisfied (When the vehicle speed is below 43 mph (70 km/h)). When the sensor does not detect the lane line.
  • [Yellow] When there is a malfunction with the lane departure warning system. In this case, have your vehicle inspected by an authorized EQUUS dealer.

If your vehicle leaves the lane when the LDWS is operating and vehicle speed


If your vehicle leaves the lane when the LDWS is operating and vehicle speed exceeds 43 mph (70 km/h), the warning operates as follows:

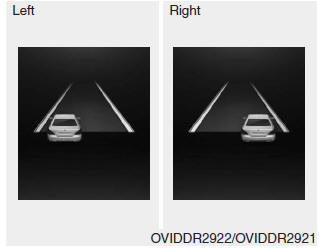

1. Visual warning


1. Visual warning

If you leave the lane, the lane you leave on the LCD display blinks yellow.

2. Auditory warning

If you leave the lane, the warning sound operates.

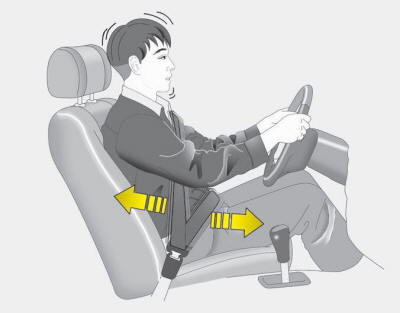

3. Tactual warning (if equipped with pre-safe seat belt)


3. Tactual warning (if equipped with pre-safe seat belt)

If you leave the lane for about 3 seconds, the pre-safe seat belt provides haptic warning.

You can activate or deactivate this feature. Refer to "User Settings Mode" in chapter 4.

The LDWS does not operate when:

  • The driver turns on the turn signal to change lanes. (When the hazard warning flasher is operated, the LDWS operates normally.)
  • Driving on the lane line.

✽ NOTICE

To change lanes, operate the turn signal switch then change the lane.
