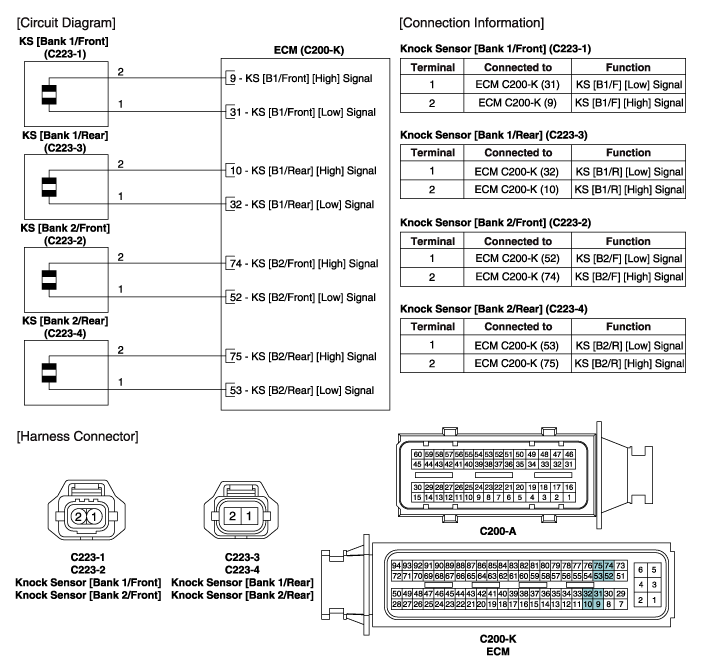

Hyundai Equus: Knock Sensor (KS) Schematic Diagrams

Knock Sensor (KS) Specifications

Specification ItemSpecificationCapacitance (pF)950 ~ 1,350 ...

Knock Sensor (KS) Repair procedures

Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold (Refer to “Intake And Exhaust System� in EM group). 3. Disconnect ...

See also:

Engine Control Module (ECM) Schematic Diagrams
ECM Terminal And Input / Output signal ECM Harness Connector ECM Terminal Function Connector [C200-A] Pin No.DescriptionConnected to1Ignition Coil (Cylinder #3) control outputIgnition Coil ( ...

Heated Oxygen Sensor (HO2S) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 3 and 4. 4. Check that the resistance is within the speci ...
