Hyundai Equus: Headlight, position light, turn signal light, side marker light and front fog
light bulb replacement - Light bulbs - Maintenance - Hyundai Equus 2009-2019 Owners ManualHyundai Equus: Headlight, position light, turn signal light, side marker light and front fog light bulb replacement

Second generation VI (2009–2019) / Hyundai Equus 2009-2019 Owners Manual / Maintenance / Light bulbs / Headlight, position light, turn signal light, side marker light and front fog light bulb replacement

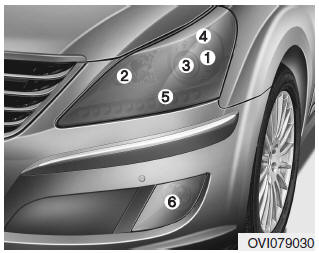

(1) Position light


(1) Position light
(2) Headlight (High)
(3) Headlight (Low)
(4) Front side marker light
(5) Front turn signal light
(6) Front fog light

1. Open the hood.


1. Open the hood.
2. Disconnect the negative battery cable.

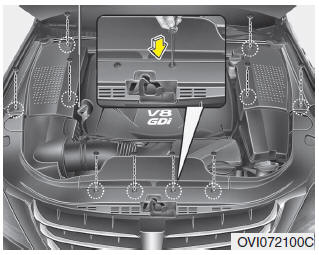

3. Push the top of the fastener to remove the cover.
4. Remove the cover.

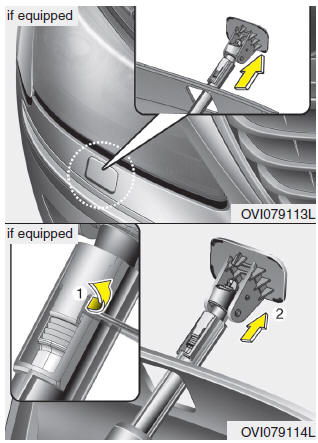

5. Pull out the cover (if equipped).


5. Pull out the cover (if equipped).
6. Insert a screw driver into the hold (1) and lift up the screw driver while pulling out the cover (2).

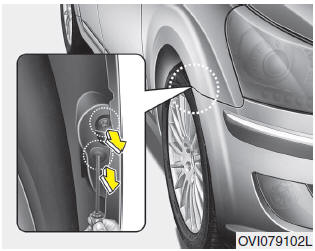

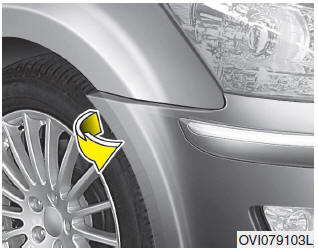

7. Remove the fastener and screw under the wheel arch.


7. Remove the fastener and screw under the wheel arch.

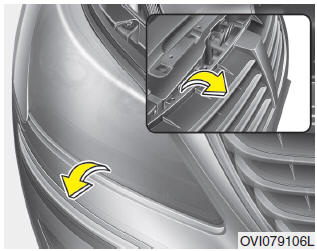

8. Pull out the bumper.


8. Pull out the bumper.

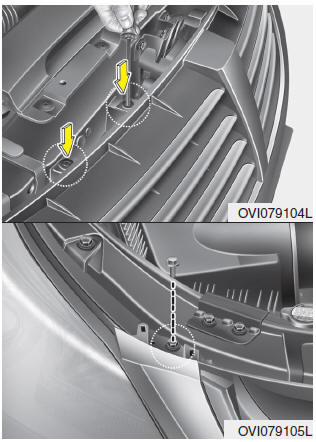

9. Remove 4 fasteners on the grille and the bolt.


9. Remove 4 fasteners on the grille and the bolt.

10. Remove the front bumper.


10. Remove the front bumper.
11. Be careful not to break up the clips on the inside of the front bumper.

12. If you want to replace the right side head lamp, remove the bolts then remove


12. If you want to replace the right side head lamp, remove the bolts then remove the air cleaner.

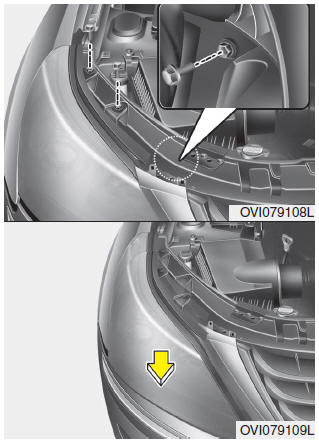

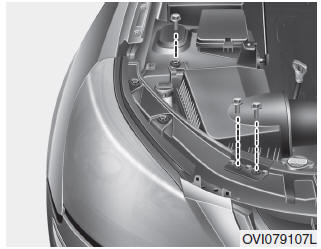

13. Remove the mounting bolts.


13. Remove the mounting bolts.
14. Pull the headlight assembly out to the front of the vehicle.

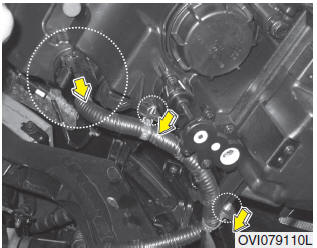

15. Remove the clips.


15. Remove the clips.
16. Disconnect the power connector (s) from the back of the headlight assembly.

WARNING - HID Headlight low beam (if equipped)

Do not attempt to replace or inspect the low beam (XENON bulb) due to electric shock danger. If the low beam (XENON bulb) is not working, have your vehicle checked by an authorized EQUUS dealer.

CAUTION

If your vehicle is equipped with High Intensity Discharge (HID) headlights, these headlights contain mercury. So if you need to have your vehicle disposed, you should remove the HID Headlights before disposal. The removed HID headlights should be recycled, re-used or disposed as hazardous waste.

✽ NOTICE

HID lamps have superior performance vs. halogen bulbs. HID lamps are estimated by the manufacturer to last twice as long or longer than halogen bulbs depending on their frequency of use. They will probably require replacement at some point in the life of the vehicle. Cycling the headlamps on and off more than typical use will shorten HID lamps life. HID lamps do not fail in the same manner as halogen incandescent lamps. If a headlamp goes out after a period of operation but will immediately relight when the headlamp switch is cycled it is likely the HID lamp needs to be replaced. HID lighting components are more complex than conventional halogen bulbs thus have higher replacement cost.

Headlight (bulb type), front turn signal, position, side marker and fog light bulbs

If the light bulb is not operating, have the vehicle checked by an authorized EQUUS dealer.

Headlight bulb

WARNING - Halogen bulbs


WARNING - Halogen bulbs

  • Halogen bulbs contain pressurized gas that will produce fragment of glass if broken.
  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.

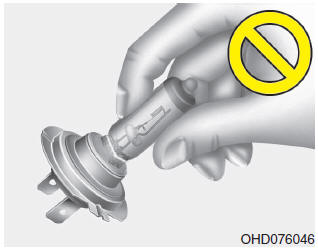

  • Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

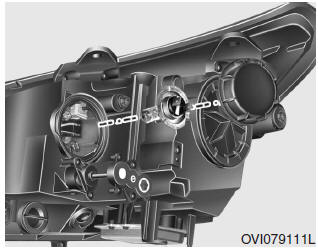

17. Remove the headlight bulb cover by turning it counter clockwise.


17. Remove the headlight bulb cover by turning it counter clockwise.
18. Disconnect the headlight bulb socket connector.
19. Unsnap the headlight bulb retaining wire by depressing the end and pushing it upward.
20. Remove the bulb from the headlight assembly.
21. Install a new headlight bulb and snap the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb.
22. Connect the headlight bulb socket connector.
23. Install the headlight bulb cover by turning it clockwise.
24. Connect the power connector(s) to the back of the headlight assembly.
25. Reinstall the headlight assembly to the body of the vehicle.

✽ NOTICE

Always have the headlight aiming adjusted after an accident or the headlight assembly is reinstalled at an authorized EQUUS dealer.

CAUTION

If the headlight (Low) is not operating, have the vehicle checked by an authorized EQUUS dealer.

Turn signal light - bulb type

If the light bulb is not operating, have the vehicle checked by an authorized EQUUS dealer.

Position light, Front fog light

If the light bulb is not operating, have the vehicle checked by an authorized EQUUS dealer.
