Hyundai Equus: Front Air Strut Assembly Schematic Diagrams - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2020 Service ManualHyundai Equus: Front Air Strut Assembly Schematic Diagrams

Circuit Diagram
1.

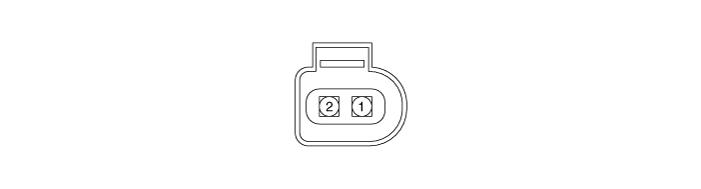

Front air strut connector

2.
Front air terminal function
Terminal
Function
1
Variable damper (-)
2
Variable damper (+)

3.

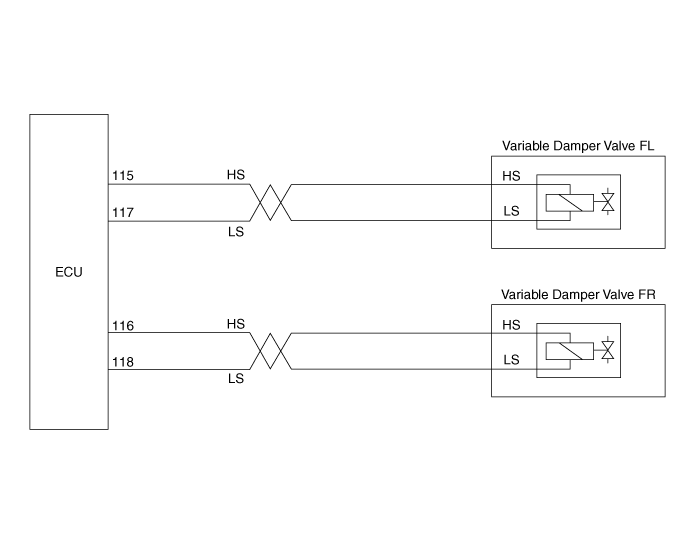

Circuit diagram
