Hyundai Equus: Distance to distance vehicle sensor - Advanced smart cruise control system (If equipped) - Driving your vehicle - Hyundai Equus 2009-2024 Owners ManualHyundai Equus: Distance to distance vehicle sensor

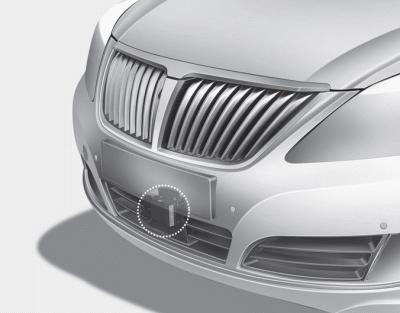

The sensor detects distance to the vehicle ahead.


The sensor detects distance to the vehicle ahead.

If the sensor is covered with dirt or other foreign matter, the vehicle to vehicle distance control may not operate correctly.

Always keep the sensor clean.

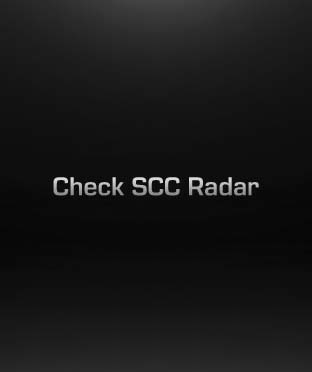

SCC (Smart cruise control) malfunction indicator

The warning message/ indicator illuminates when the vehicle to vehicle distance


The warning message/ indicator illuminates when the vehicle to vehicle distance control system is not functioning normally.

Have the system checked by an authorized EQUUS dealer.


Have the system checked by an authorized EQUUS dealer.

CAUTION

  • Do not install accessories around the sensor and do not replace the bumper by yourself. It may interfere with the sensor performance.
  • Always keep the sensor and bumper clean.
  • To prevent sensor cover damage from occurring, wash the car with a soft cloth.
  • Do not damage the sensor or sensor area by a strong impact. If the sensor moves slightly off position, the smart cruise control system will not operate correctly. If this occurs, have your vehicle checked by an authorized EQUUS dealer as soon as possible.
  • Use only a genuine HYUNDAI sensor cover for your vehicle.

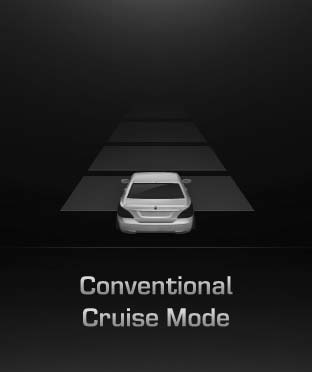

To convert to cruise control mode:

The driver may choose to only use the cruise control mode (speed control function)


The driver may choose to only use the cruise control mode (speed control function) by doing as follows:

1.Turn the smart cruise control system on (the cruise indicator light will be on but the system will not be activated).
2.Pull the distance to distance switch for more than 2 seconds.
3.Choose between "Smart cruise control(SCC) mode" and "Cruise control(CC) mode".

WARNING

When using the cruise control mode, you must manually access the distance to other vehicles as the system will not automatically brake to slow down for other vehicles.

    Smart cruise control vehicle to vehicle distance
    To set vehicle to vehicle distance: This function allows you to program the vehicle to maintain relative distance to the vehicle ahead without depressing the accelerator pedal or brake pedal. ...

    Limitations of the system
    The smart cruise control system may have limits to its ability to detect distance to the vehicle ahead due to road and traffic conditions. On curves On curves, the smart cruise control syst ...
