Hyundai Equus: Crankshaft Position Sensor (CKPS) Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Equus VI 2009-2021 Service ManualHyundai Equus: Crankshaft Position Sensor (CKPS) Schematic Diagrams

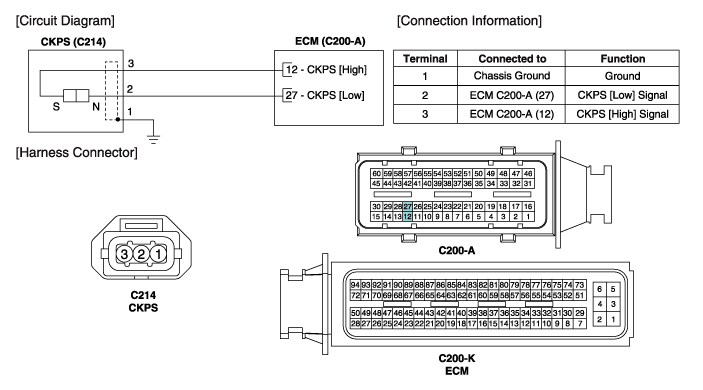

Circuit Diagram

    Crankshaft Position Sensor (CKPS) Troubleshooting
    Signal Waveform This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle. ...

    Crankshaft Position Sensor (CKPS) Repair procedures
    Inspection 1. Check signal waveform of CKPS and CMPS using a GDS. Specification: Refer to УWaveformФ Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cab ...
