| Component Location |

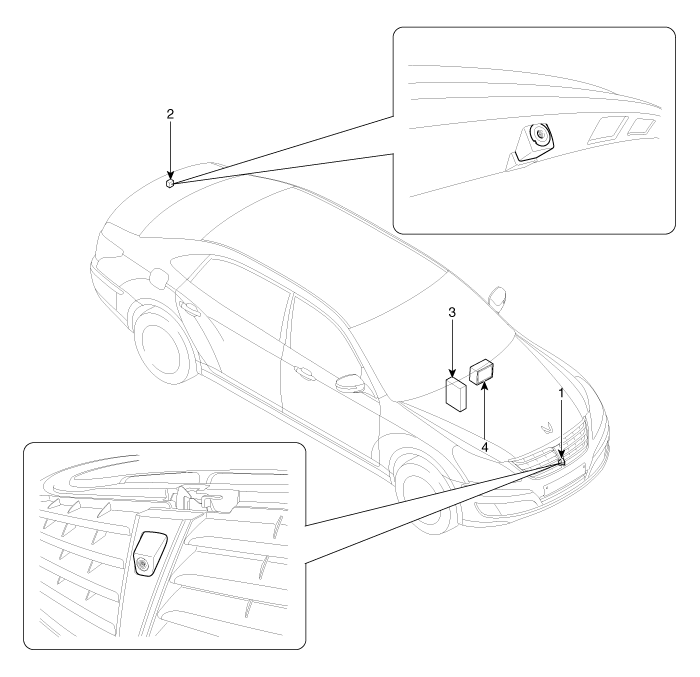

| 1. Front camera 2. Back view camera | 3. Front back view camera unit 4. LCD monitor |
x In case of applying DIS system, Front back view camera unit includes PGS (Parking Guide System) function.
x In case of only applying AV & Navigation system,
Front back view camera unit doesn't include PGS (Parking Guide System)
function.
Schematic Diagrams
Circuit Diagram
...
