| Component Location |

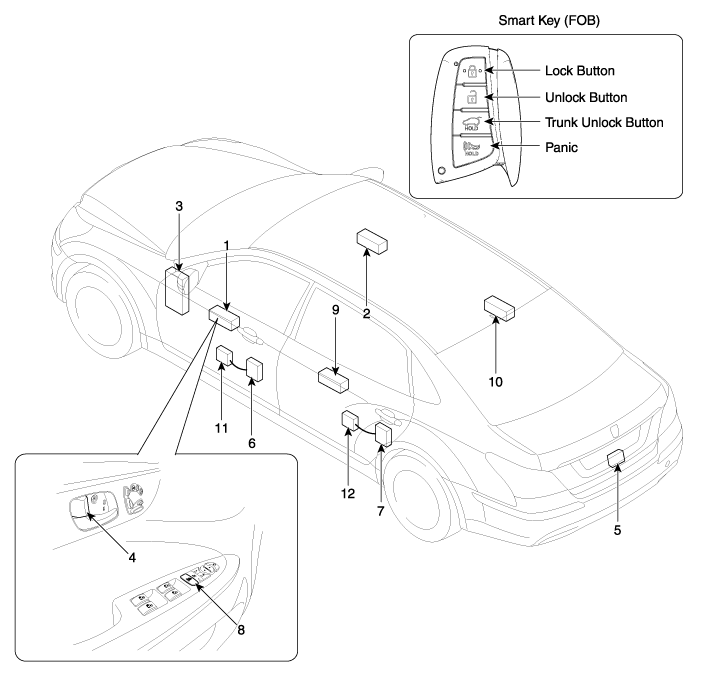

| 1. DDM (Driver Door Module) 2. ADM (Assist Door Module) 3. IPM (Instrument Panel Module) 4. Door lock knob 5. Trunk lid actuator 6. Front door lock actuator | 7. Rear door lock actuator 8. Door lock switch 9. RLDM (Rear Left Door Module) 10. RRDM (Rear Right Door Module) 11. Front sofe closing actuator (SCA) 12. Rear sofe closing actuator (SCA) |
Power Door Locks
...
Description and Operation
Description
System Overview
The larger the size of the door, the harder it is to close
it. Quite often we see people driving with a door not completely closed.
Power door latch addresses the is ...
