| Component Location |

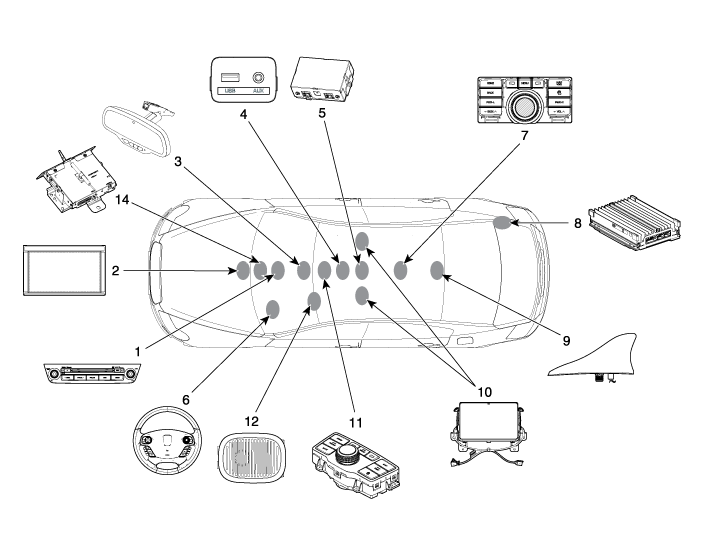

| 1. AVN head unit 2. Front LCD monitor 3. Blue Link keyboard (Option) 4. AUX jack 5. Rear monitor spliter 6. Steering wheel remote controller (SWRC) 7. AVN rear keyboard | 8. External amplifier 9. Roof antenna 10. Rear LCD monitor 11. AVN front keyboard 12. Hands free mic |
Description and Operation
Description
Premium AVN system
The premium AVN system has improved information search and
easiness of manipulation for the driver by simplifying the system
operation experience and unifying th ...
