Hyundai Equus: Brake Booster Components and Components Location - Brake System - Brake System - Hyundai Equus VI 2009-2020 Service ManualHyundai Equus: Brake Booster Components and Components Location

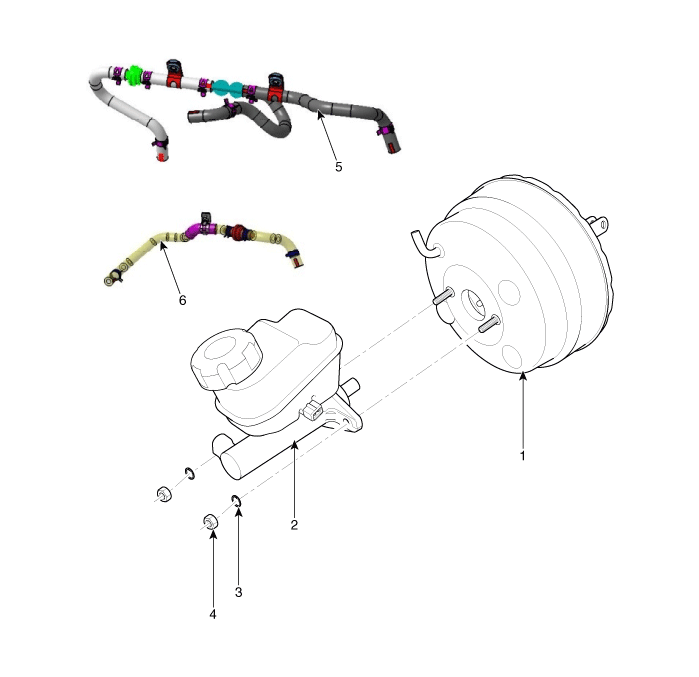

Components

1. Brake booster
2. Master cylinder assembly
3. Washer
4. Nut
5. Vacuum hose (Lammda)
6. Vacuum hose (Tau)

    Repair procedures
    Operation and Leakage Check Check all of the following items ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive. If the brakes do not work proper ...

    Brake Booster Repair procedures
    Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...
