Hyundai Equus: Blind Spot Detection Unit Schematic Diagrams - Blind Spot Detecation system - Body Electrical System - Hyundai Equus VI 2009-2020 Service ManualHyundai Equus: Blind Spot Detection Unit Schematic Diagrams

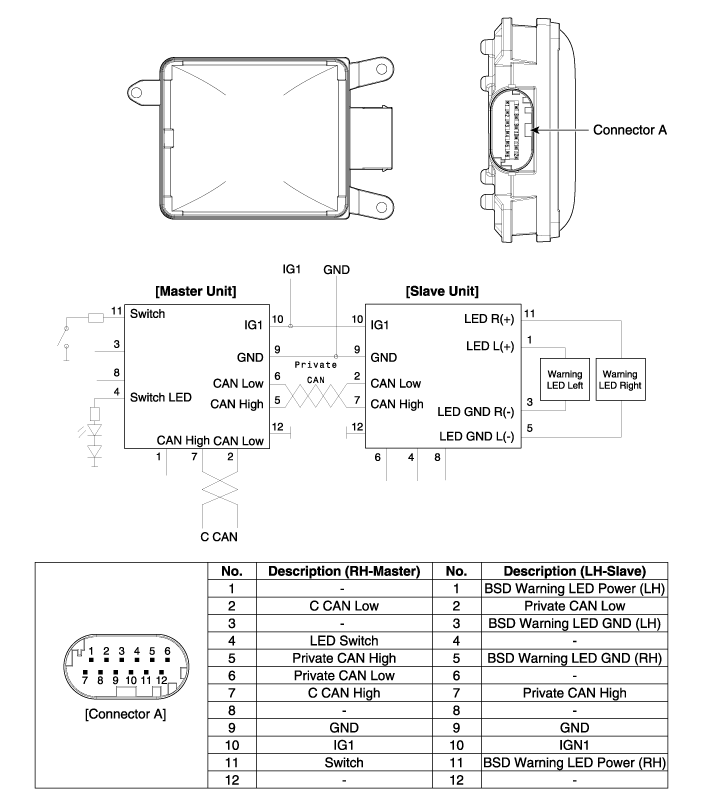

Circuit Diagram

    Repair procedures
    Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS ...

    Blind Spot Detection Unit Repair procedures
    Removal Blind spot detection (BSD) unit 1. Disconnect the negative (-) battery.     Be careful when removing the blind spot detection unit. The bracket may break off from the b ...
