Hyundai Equus: Blind Spot Detection Switch Components and Components Location - Blind Spot Detecation system - Body Electrical System - Hyundai Equus VI 2009-2020 Service ManualHyundai Equus: Blind Spot Detection Switch Components and Components Location

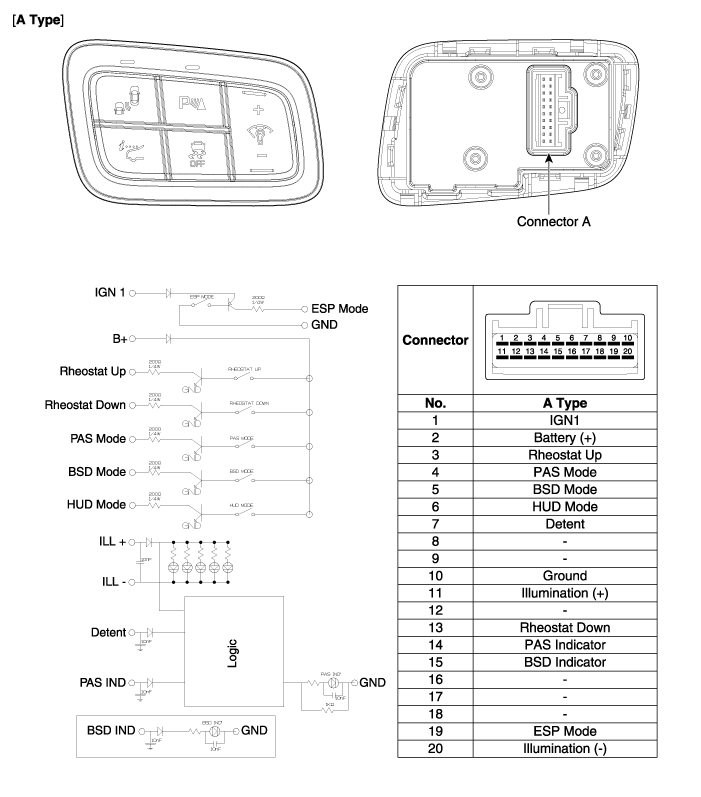

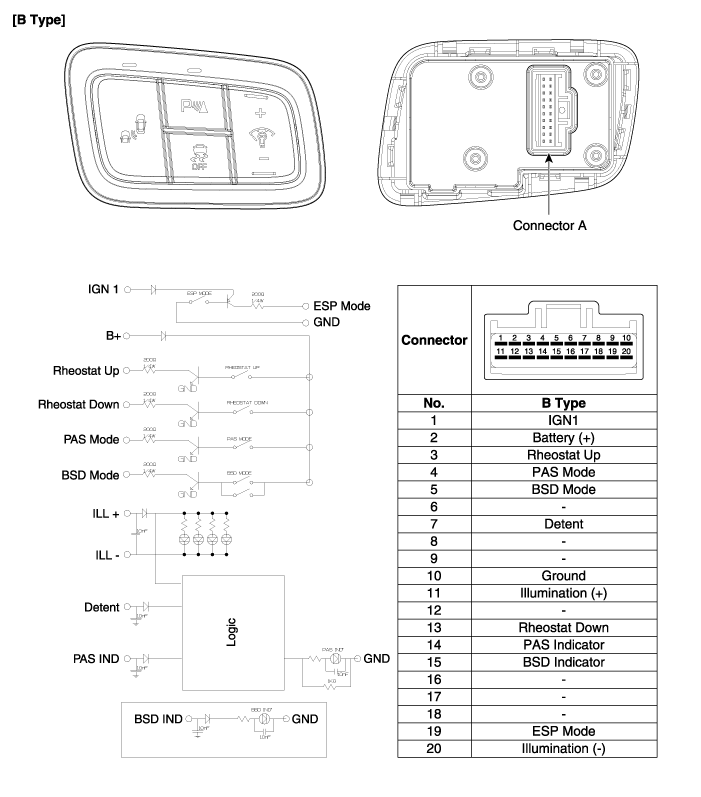

Component
