Hyundai Equus: Ashtray
WARNING - Ashtray use
- Do not use the vehicle’s ashtrays as waste receptacles.
- Putting lit cigarettes or matches in an ashtray with other combustible materials may cause a fire.

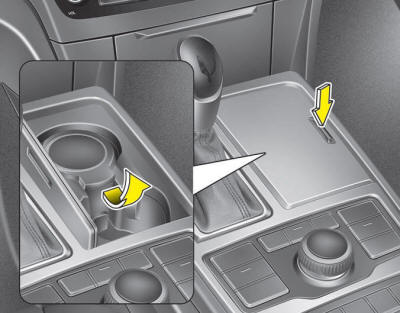

Front
To open the cover, press the cover and it will slowly open. To clean the ashtray, the plastic receptacle should be removed by lifting the plastic ashtray receptacle upward and pulling it out.

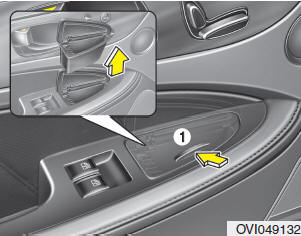

Rear
Use the rear ashtray after spreading the cover (1).
To clean the ashtray, the plastic receptacle should be removed by lifting the plastic ashtray receptacle upward and pulling it out.
