Hyundai Equus: 4 seater - Vehicle load limit - Driving your vehicle - Hyundai Equus 2009-2020 Owners ManualHyundai Equus: 4 seater






Refer to your vehicles tire and loading information  label for specific


Refer to your vehicles tire and loading information  label for specific information about your vehicle's capacity weight and seating positions.

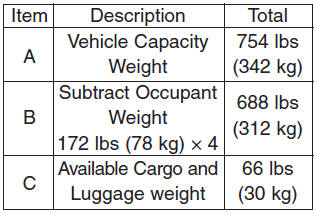

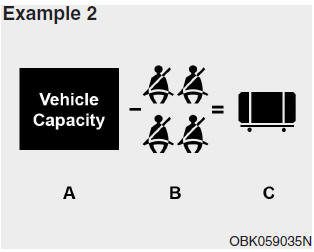

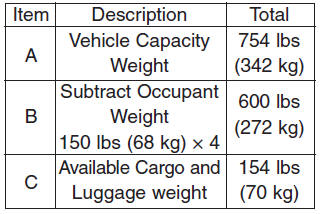

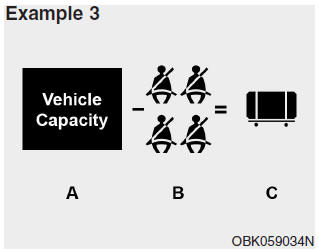

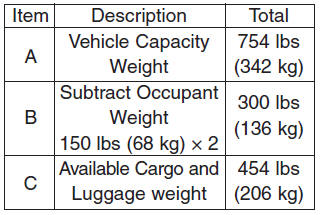

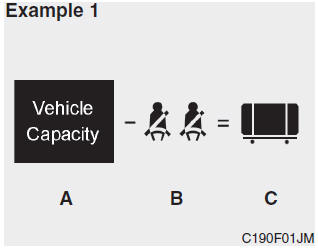

The combined weight of the driver, passengers and cargo should never exceed your vehicle's capacity weight.

    5 seater
    Refer to your vehicles tire and loading information label for specific information about your vehicle's capacity weight and seating positions. The combined weight of the driver, p ...

    Certification label
    The certification label is located on the driver's door sill at the center pillar. This label shows the maximum allowable weight of the fully loaded vehicle. This is called the GVWR (Gross ...
